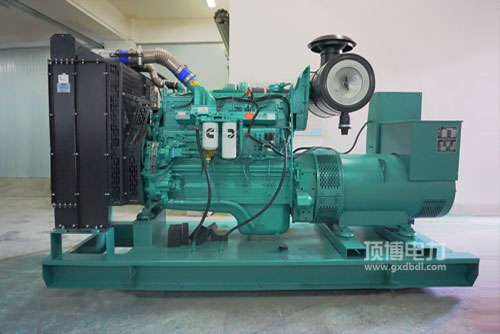

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用打火机汽柴油国家设计可靠性好: 专业的汽柴油把握设计，具有的STC、ESTC 级别划分把握设计，异常设计的活塞式顶上助燃室，油田发射汽柴油，彻底吸雾，助燃彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用打火机瞬态安全性能比较好: 漂亮的打火机大体构思，互相配合康明斯差异化的的EFC系统化，调整精确度较高，回复日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用发起机升电机功率高: 纵向设计构思紧凑型.形壮安装正确，运作稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50满足需要中国国非路途3、阶段中及美国Tier2. Tier 3产生政策法规标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件都有机会得到性好， 起主观因素加载及养护等养护等生活便利，总费用少。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率范围内 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚厚度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯发电厂用发起机的优点和缺点：密度小， 挤压变高， 格栅板气氛热处理，最易启动时，手机车载电子交流电源的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机形号	惯用热效率(kW)Prime Power	自备电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
